Description

50A MPPT Solar Charge Controller Solar Charge with LCD Display

If you have any questions regarding this product, please call us at 1 (626) 838-5511 or email [email protected].

Key Features

• 12v/24v/36v/48v DC automatically identifying system voltage.
• Rated charge current: 50 Amp
• Battery Input Voltage Range: 8V～68V
• Max. PV open circuit voltage:150V/138V
• MPP voltage range:V(BAT)+2V～108V

• Max. PV input power: 625W/12V, 1250W/24V, 1875W/36V ,2500W/48V
• Battery type :Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
• Charging Power and Current Limitation Function
• PV short circuit / PV reverse polarity /Battery over voltage /Battery over discharge / Battery reverse polarity / Load overload protection

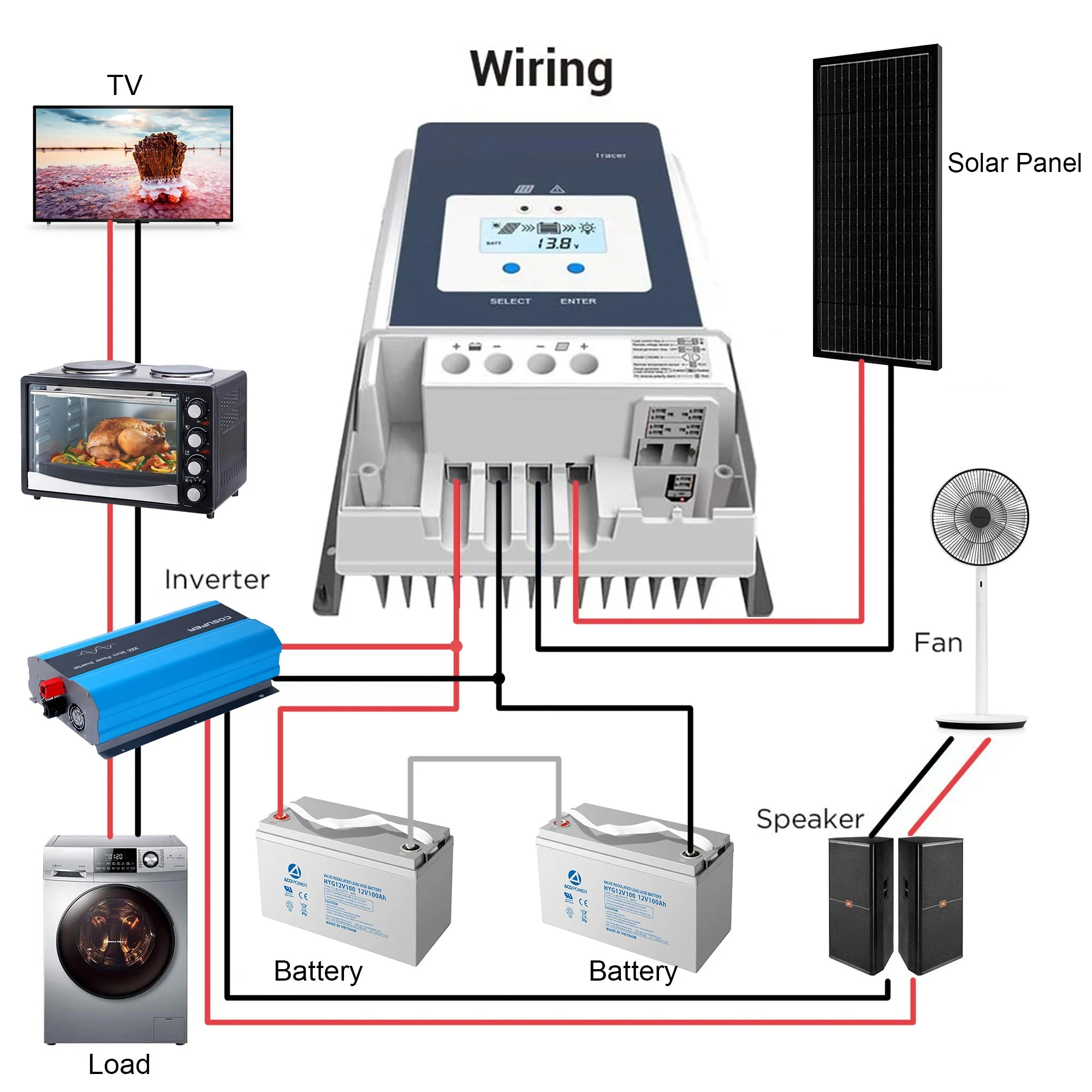

• Installation Notes: First connect the battery; Then connect the load; Finally connect the solar panel.

Package List

• 1 x 50A MPPT Solar Charge Controller
• 1 x User Manual
